Description
Safe and Efficient Material Handling
Up-Enders and Inverters are operator friendly and can be fully customized to provide safe and efficient material handling.

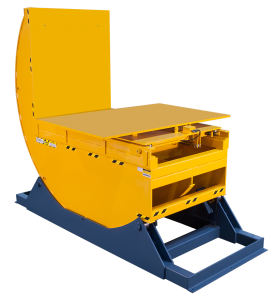

90° MECHANICAL UP-ENDER WITH POWERED PLATFORM SHIFT AND 180° ROTATION
Features & Benefits
- Load Capacities of 1,000 – 100,000 lbs.
- Internally Mounted Motor and Drive System
- Compact Operating Footprint
- Motion Control Switches
- Dust Tight Control Panel Containing Magnetic Starter, Transformer, Thermal Overload, Terminals & Fuses
- Rack & Pinion Drive 180° Rotating Table Bed
C-FRAME 180° MECHANICAL INVERTER WITH SCISSOR CLAMP
Equipped with a powerful hydraulic clamp and powered conveyors, NORDOCK® Inverters easily reposition equipment and materials a full 180° and integrate them onto an existing conveyor system.
Features & Benefits
- Customized Size, Capacity and Options to Suit Any Application
- 180° Rotating Platform with Hydraulic Powered Clamp
- Optional Conveyor System for Powered On/Off Loading
- Spherical Bearings and Lifetime Lubricated Bushings on All Pivot Points
- Heavy-Duty Continuous Duty Drive Systems
- High Tensile Solid Steel Scissor Legs
- Conveyor Moves Loads In & Out of the Machine
- Velocity Fuses, Emergency Stop Buttons
HYDRAULIC UP-ENDER/COIL UP-ENDER
Hydraulic Upenders handle heavy items like steel coils, dies or any product that requires re-positioning by up to 90°.
Features & Benefits
- Customized to Suit the Capacity, Size and Securing Requirements
- Heavy-Duty Integral Power Unit & Continuous Duty Motor
- Dust Tight Metal Control Panel
- Positioning Stop Switches at Each End of Travel
- Hydraulic Cylinders with Chrome Rod and High-Pressure Seals
- Optional V-Saddle Cradles, Slots and Surface Protection

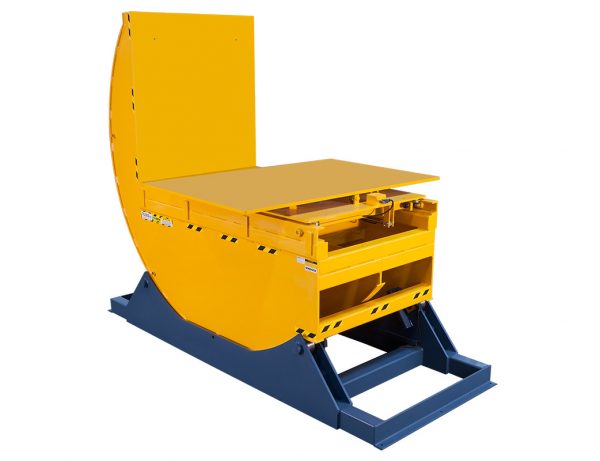

MECHANICAL UP-ENDER
Mechanical Up-Ender’s can be easily rotated 90° by the operator for quick and efficient material handling.
Features & Benefits
- Customized to Suit the Capacity, Size and Securing Requirements
- 90° Rotation
- 5,000 to 100,000 lb. Available Capacities
- Internally Mounted Motor and Drive System
- Positioning Stop Switches at Each End of Travel
- Compact Operating Footprint
- Uniform Tilt Speed
- Optional V-Saddle Cradles and Surface Protection

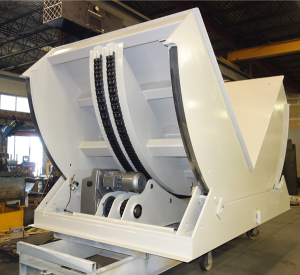

MAGNA UP-ENDER
Features & Benefits
- 90° Upend Rotation
- 60,000 lb. Capacity
- Heavy Duty Duplex Roller Chains
- 7.5 HP Motor
