Description

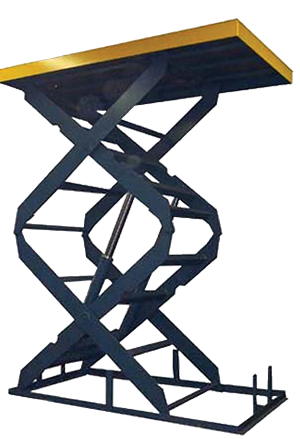

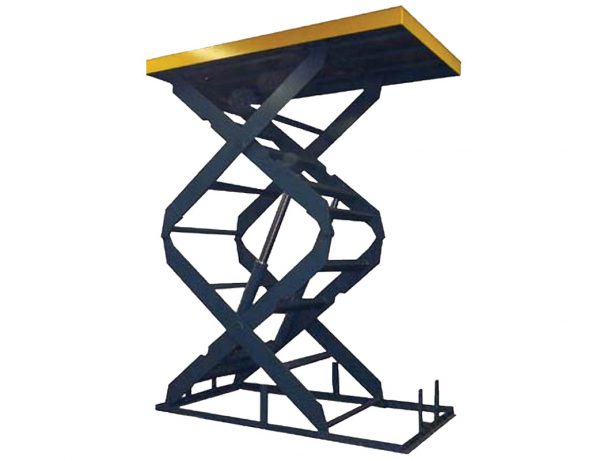

HYDRAULIC DOUBLE SCISSOR LIFT PLATFORM
Standard capacity up to 20,000 lbs. standard travel up to 16 feet.
DS Features & Benefits
- Self-Aligning Spherical Bearings and Lifetime-Lubricated Bushings at All Pivot Points
- Cam Follower Rollers with High Tensile Needle Bearing Construction
- High Performance Cylinders with Chrome Rod, Guide Bearing, Scraper and Safety Velocity Fuse
- Guardrails with Kick Plate on Non-Access Sides and Chains with Snap Release on Access Sides
- Two Control Stations Provided
- Over-Travel Limit Switch

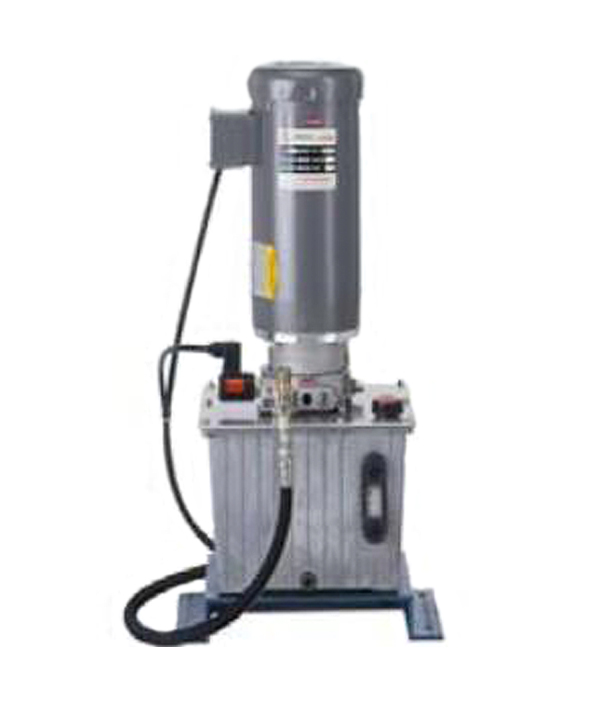

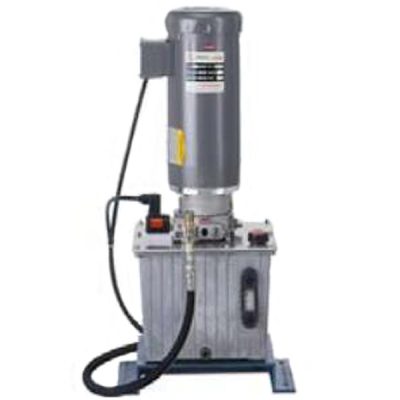

- Remote Mounted Power Unit Supplied with Oil and High-Pressure Hose
- Motor Controller with Dust Tight Enclosure and Reduced Voltage to Watertight Push Button Stations
- Checker Plate Deck Surface
DS Options & Accessories
- Deck Perimeter Electric Stops
- Custom Guarding, Gates & Interlocks
- Full Travel Stabilizer Guides
- Leveling & Anti-Creep Switches
- Roll Off Stops
- Numerous Custom Performance and Safety Options Available
Triple Scissor Lift
The Triple Scissor Lift is used for floor to floor or floor to conveyor applications. Custom-built 3,500 lb. capacity Triple Scissor Lift has a total raised height of 108″.

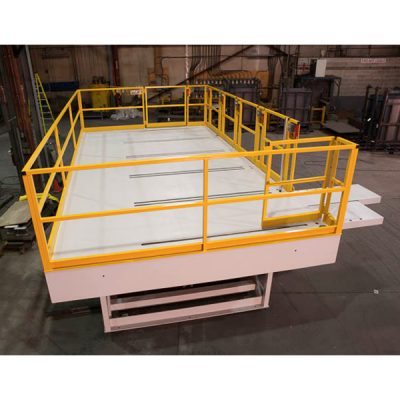

MULTI-STAGE™ Scissor Lift
The MULTI-STAGE™ scissor lift provides a large platform with optional multiple telescoping ramps. 5400 lb. lift capacity with 172” travel range with 10 separate extendable sections each with 500 lb. capacity.
