OPERATION
The operator positions the extension lever in the integral deck pocket pulling back until engaging the lip extension arm. Pushing the lever forward then extends the standard 16” lip automatically on to the truck bed.
The lip automatically unlocks when contacting the bed of the truck or when reaching the full below service range. The ramp shall be free to float with the up and down movement of the truck bed. The deck and lip automatically return to stored position, protected by the dock bumpers, if the truck pulls away.
CONSTRUCTION

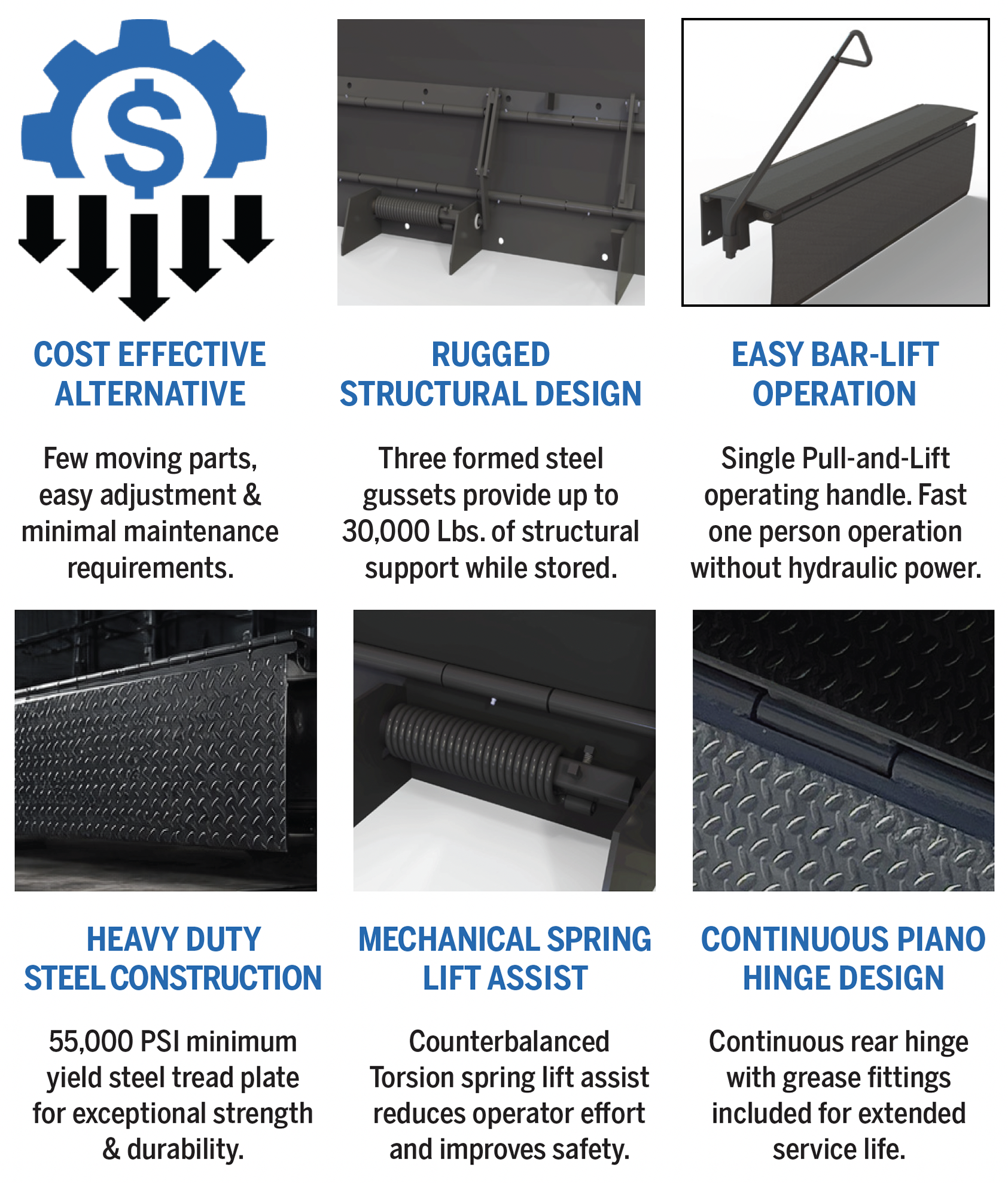

Steel deck and lip to be constructed from high tensile 55,000 psi yield tread plate. Ramp to be continuously welded to the deck lugs and rear piano hinge. Lip to be full width of plate, non-tapered with leading edge chamfer milled at maximum 15 degrees.

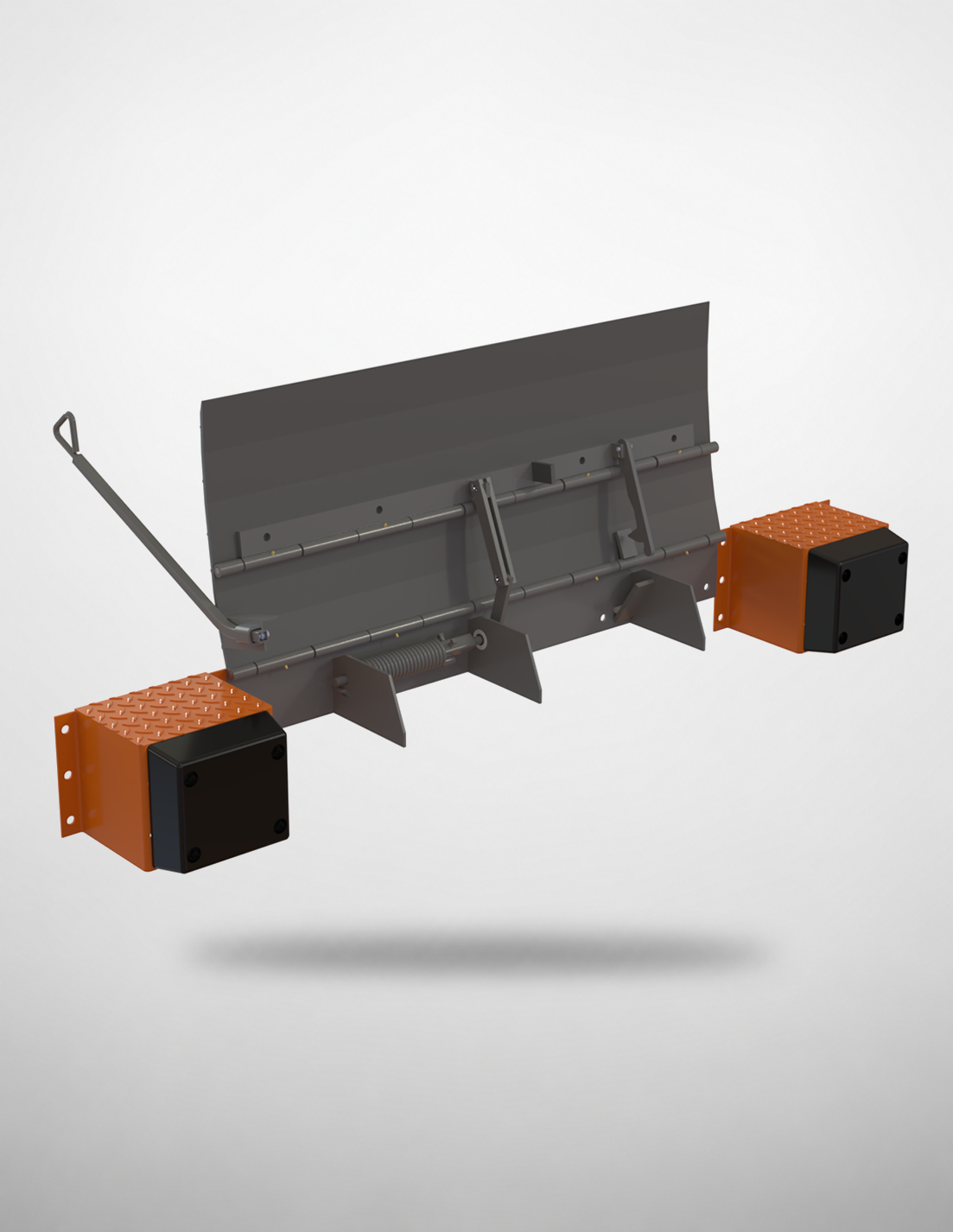

Welded sub-frame assembly to have full width rear hinge and solid steel deck supports.
Bumper extension blocks to be closed on all sides with a 10” wide x 13” high x 4” projection solid rubber bumper attached to the face for a total projection of 18” from foundation wall.
Front and rear hinge rods to be zinc coated with grease fittings provided for the rear hinge.

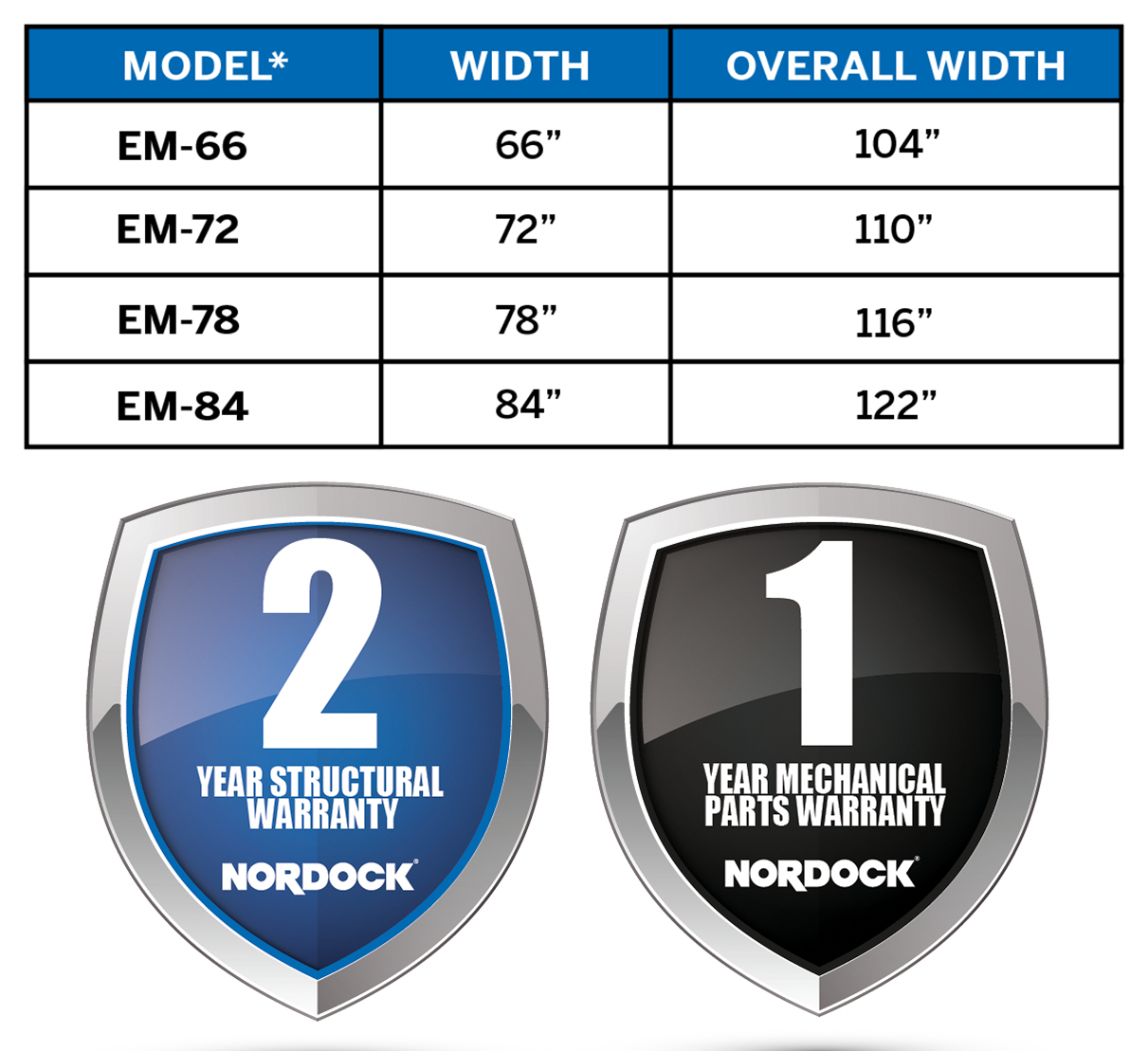

WARRANTY
NORDOCK® guarantees that the EM LEVER™ series of hydraulic dock levelers will perform as described and to the full satisfaction of the purchaser for one-year from date of receipt or NORDOCK® will repair, replace or remove the product and refund the purchase price.
