BOXCAR™

Inflatable Rail Shelter

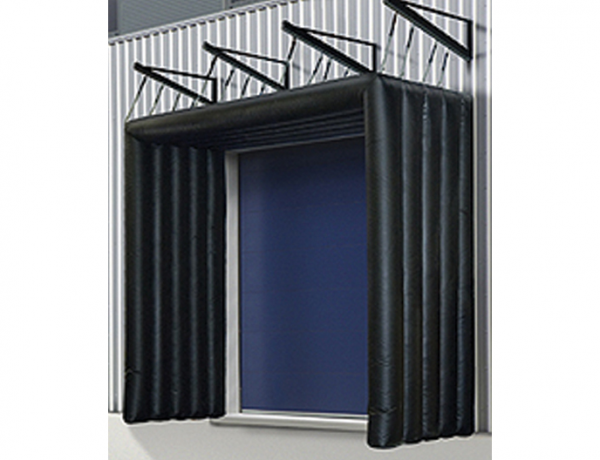

The IR-650 Series BOXCAR™ Inflatable Shelters are activated once the railcar is positioned creating a weathertight seal. The IR Series is available in custom sizes and projections to suit specific applications.

The BOXCAR™ Series features high wear resistant fabric, quick retraction system and on/off pilot light. Four-sided units with bottom are available including a Velcro attached breakaway fabric panel.

EFFECTIVE PROTECTION WHILE LOADING &
OFF LOADING STANDARD BOX TYPE RAILCARS

FEATURES & BENEFITS

Improves Safety & Productivity while Reducing Costs by Providing Protection from Inclement Weather, Dirt & Insects while Saving Energy
High-Tear Abrasion Resistant Fabrics with Double Lock Stitched Seams
Unique Retraction System Quickly Deflates & Returns Unit Against Wall
On/Off Switch with Pilot Light
Steel Side Frame Guards and Galvanized Steel Mounting Hardware Included
Motor/Blower Cover
Kiln-Dried Pressure Treated Superior Grade Backing & Head Frame Lumber
Condensation Drainage System
3 Side & 4 Side Units Available
Custom Door Sizes & Projections to Suit Specific Applications
Storage Retention Straps

WEARTOUGH^® Fabric Performance Specifications

Operation

Once the railcar is positioned for loading, the operator switches the control button to start the blower that in turn inflates the bag assemblies against the side of the railcar creating a seal. The blower runs continuous as long as the loading or off-loading is being carried out. When loading is complete, the operator turns off the switch and the shelter bags automatically retract to the building wall.

Construction

The bags are constructed from flexible and UV resistant 14 oz. High-Tear vinyl fabric, double lock stitched and attached to pressure treated superior backing lumber. The 1/2 HP 115/1/60 motor/blower is externally wall mounted with a galvanized steel protective cover. The on/off switch is mounted to the interior wall and equipped with a power on pilot light. A bag support and retraction system is mounted above the shelter with either gravity return tracks or spring rollers. Condensation drainage holes are provided in the bag assemblies. All mounting hardware is galvanized steel.

Warranty

NORDOCK^® guarantees that the IR Model of inflatable rail shelters will perform as described and to the full satisfaction of the purchaser for one-year from date of receipt. Consult your NORDOCK^® representative for assistance in choosing the correct size and options for your application.

Model (IR-650) Options & Accessories Wear Pleats Available in 4″, 6″ and 8″ Overlap Exposure Adjustable Head Curtain Fire Retardant Foam & Fabric Half or Full Foam Filled Curtain Wide Range of Configurations to Suit Site Conditions Double Layer Wear Face Galvanized Steel Canopies Longer Curtains Tapered Side Pads to Suit Incline/Decline Approach Wheel Chocks
