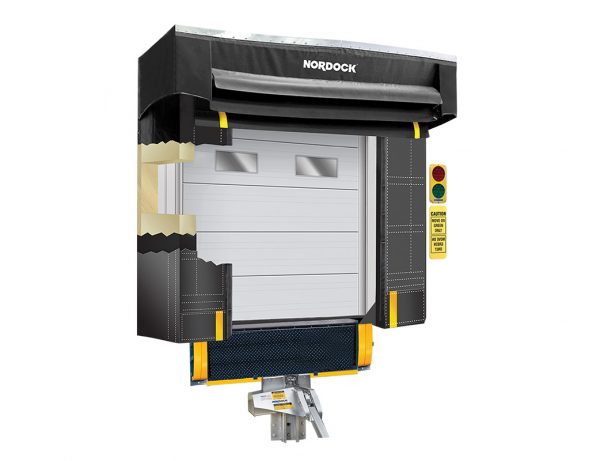

MIDNIGHT™ SERIES FF-RS9 FOAMFRAME™ FULL FEATURED DOCK SHELTER

Description

The MIDNIGHT™ Series full access Dock Shelter provides the ultimate light blocking effect to protect personnel and cargo from infiltration of weather, dirt and pests of all kinds.

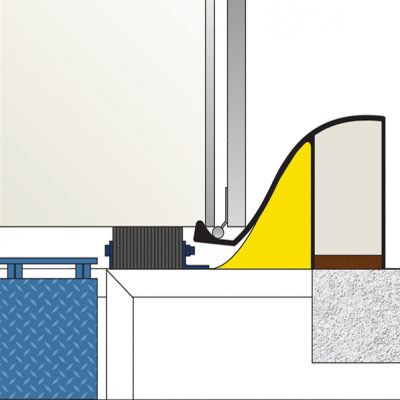

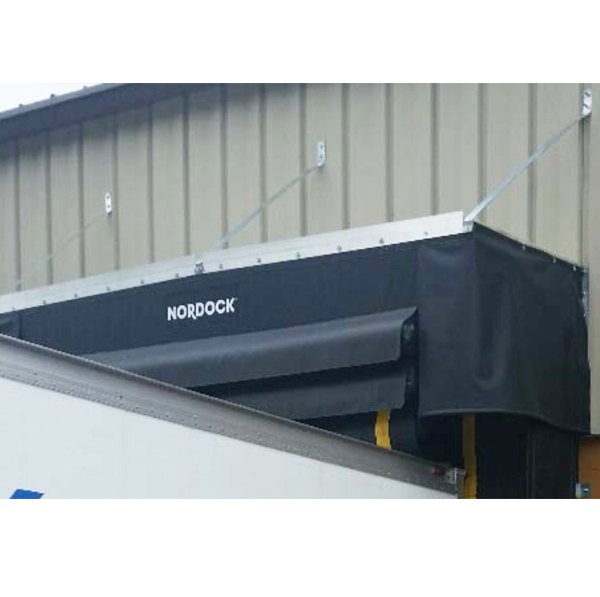

The Model FF-RS9 FOAMFRAME™ shelter has combined advantages including the RAINSTOP™ trailer top wiper seal with XT-1000 super fabric wear face that stops driving wind and rain from entering the loading dock area, TERMINATOR™ gap-seal that wraps around the ends of swing out trailer doors to block the hinge gap and TOUGH-SPLIT™ gussets that relieve the stress and extend the life of the head curtain.

MIDNIGHT™ Series Dock Shelter Features & Benefits

High-Tear Abrasion Resistant Fabrics with Double Lock Stitched Seams
Kiln Dried Pressure Treated Superior Grade Backing & Head Frame Lumber
Head & Side Curtains Inserted with Hardened Steel Stays & Foam Bead to Maintain a Tight Seal Against Trailer
Head Curtain Provided with Overlapping Wear Pleats in Corners
Bottom Corner Draft Pads with “No Step” Imprint
24” High Yellow Guide Stripes on Bottom of Pads for Accurate Truck Positioning
Translucent Frame Top Allows in Natural Light
Most Suitable for Door Openings Up to 10 Ft. Wide x 10 Ft. High
Upper Frame Supports
Galvanized Mounting Hardware Included
XT-1000 Super-Fabric on RAINSTOP™ Impact Area & Head Curtain Wear Pleats

MIDNIGHT™ Series Dock Shelter Options & Accessories

Tapered Sides
Steel Frame
RS9-2 (12’-9” Trailer Height Range)
RS9-4 (11’-3” Trailer Height Range)
XT-1000 Super-Fabric on RAINSTOP™ Impact Area & Head Curtain Wear Pleats
Dock Levelers
TRUCK-LOCK® & SMART-HOOK® Vehicle Restraints
FALL-STOP™ Barrier Gate
Loading Dock Lights
IMPACT™ Series Steel Spring & Steel Face Dock Bumpers (10-Year Structural Warranty)
Wheel Chocks
Galvanized Steel Canopies

*SEE CHART IN SHORT FORM SPECS FOR EXCLUSIVE FABRIC OPTIONS

Short Form Specs

WEARTOUGH® Fabric Performance Specifications

Description

The MIDNIGHT™ Series full access dock shelter provides the ultimate light blocking effect to protect personnel and cargo while loading and off loading trailers.

Operation

The truck backs into the side and top curtains to help keep out inclement weather, dust, and insects creating a more productive and safer environment while saving energy costs and increasing security.
Dock shelter(s) to be model FF-RS9 as manufactured by NORDOCK® to suit door size of ________ wide x ________ high and dock height of ________ with a projection of ________ to provide 14” projection beyond front face of dock bumpers.
Each unit shall consist of (2) two fabric covered foam side pads with front curtains with TERMINATOR™ swing out trailer door gap seals, one head frame with RAINSTOP™ trailer top wiper seal with 12’- 0” to 13’- 6” height range and one head curtain with TOUGH-SPLIT™ gussets.

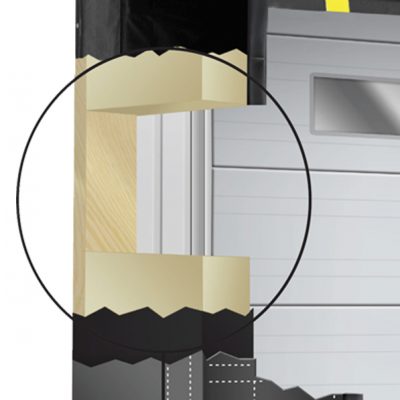

Side pads to be constructed with compression recovery polyurethane foam core continuously bonded to pressure treated superior backing lumber and fully wrapped with the base fabric and have 24” high bottom yellow guide stripes to aid in trailer positioning. The base fabric shall be ___________.
The front side and top curtain to have sewn in hardened steel stays to keep tight against the truck and fabric shall be ___________. Head curtain drop shall be 30” long or ________ to provide a minimum 6” overlap with the lowest trailer/truck to be serviced.

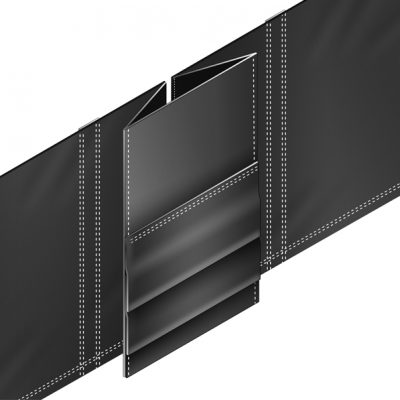

The head curtain shall be equal to the overall unit width and have corner wear pleats and wind retention cords.

Warranty

NORDOCK® guarantees that the FF-RS9 Model of dock shelters will perform as described and to the full satisfaction of the purchaser for one-year from date of receipt. Consult your NORDOCK® representative for assistance in choosing the correct size and options for the application.
