WEARTOUGH® - NORDOCK Inc.

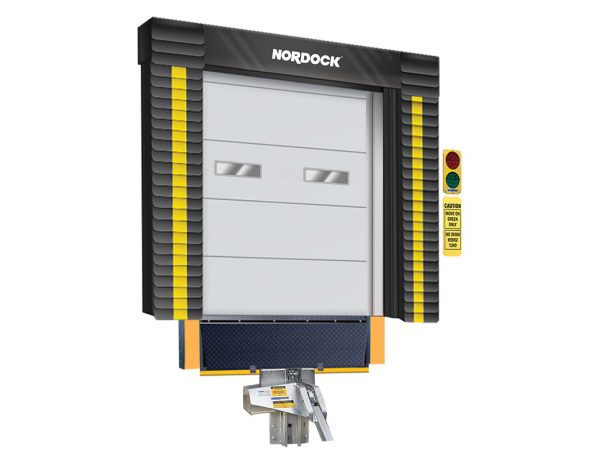

Stationary Head Pad Seal

The FP Series Dock Seals provides exceptional protection for personnel and cargo while loading and unloading. The memory foam core side and fixed header creates a tight seal between the trailer and the building providing total trailer access with a maximum weathertight seal.

Available for door openings up to 9′ x 9′.

MAXIMUM WEATHER-TIGHT
COMPRESSION STYLE SEAL

FEATURES & BENEFITS

Improves Safety & Productivity while Reducing Costs by Providing Protection from Inclement Weather, Dirt & Insects while Saving Energy
High-Tear Abrasion Resistant Fabrics with Polyester Base & Double Lock Stitched Seams Suitable to Temperatures of – 40 Degrees
Pressure Treated Superior Grade Backing Lumber
99 % Memory Foam Core for Extended Life
Condensation Drainage System

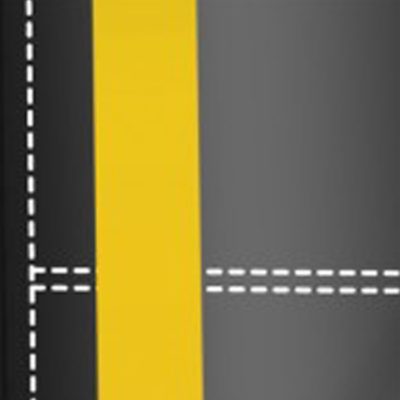

Full Height Yellow Guide Stripes for Accurate Truck Positioning
Most Suitable for Door Openings Up to 9’ Wide x 9’ High
Galvanized Mounting Hardware Included
Standard 22 oz. Vinyl

WEARTOUGH^® Fabric Performance Specifications

Specification

Dock door seal(s) to be Model FP as manufactured by NORDOCK^® to suit door size of ________ wide x ________ high and dock height of ________ with a projection of ________ to provide 4-6” beyond front face of dock bumpers. Each unit shall consist of (2) two side pads and one head pad. Taper side pads if needed to suit an approach grade percentage of _______________. Side and head pads to be constructed with 99% compression recovery polyurethane foam core continuously bonded to kiln dried superior backing lumber and fully wrapped with the base fabric. The base fabric shall be _______________. The second layer of fabric for wear pleats shall be _______________ with a ________” face exposure. The second layer of fabric for wear faces shall be _______________ on inside ___ / front face ___. Head pad height shall be ________ to provide 4” overlap with the highest trailer/truck to be serviced. Optional drop curtain off head pad to overlap trucks lower than door opening to be either base fabric ___ or PVC strips ___ with length of ________. The unit shall include 24” high ___ or optional full height ___ yellow guide stripes to aid in trailer positioning.

Warranty

NORDOCK^® guarantees that the FP Model of dock seals will perform as described and to the full satisfaction of the purchaser for one-year from date of receipt. Consult your NORDOCK^® representative for assistance in choosing the correct size and options for your application.

Model (FP) Options & Accessories Wear Pleats Available in 4″, 6″ and 8″ Overlap Exposure Adjustable Head Curtain Fire Retardant Foam & Fabric Half or Full Foam Filled Curtain Wide Range of Configurations to Suit Site Conditions Double Layer Wear Face Galvanized Steel Canopies Longer Curtains Tapered Side Pads to Suit Incline/Decline Approach Wheel Chocks

SMART-HOOK^® & TRUCK-LOCK^® VEHICLE RESTRAINTS

DOCK LEVELERS

TERMINATOR™ TRAILER DOOR GAP SEAL

IMPACT™ SERIES STEEL SPRING & STEEL FACE DOCK BUMPERS 10-YEAR STRUCTURAL WARRANTY

OPTIONAL WEAR PLEATS

FALL-STOP™ SAFETY BARRIER GATES

LOADING DOCK LIGHTS

Literature

Provides a detailed overview of the performance, operation, and other important characteristics.

Model FP – WEARTOUGH® – Dock Seal – Literature.pdf

Transmittal

Important document submitted by the sales team/contractor to allow the design professionals to review project details, special requirements and the information necessary to complete a sale.

Model FP – WEARTOUGH® – Dock Seal – Transmittal.pdf

Architectural Specs

Detailed document of the dimensions, construction, materials etc., of work done or to be done on a project, prepared by our engineering team.

Model FP – WEARTOUGH® – Dock Seal – Specs.pdf

Seal & Shelter Brochure

Seals & Shelters Brochure.pdf
